IP66 High Lumen LED Street Light 80W Type II SPD 20KV MW Driver Bridgelux Chip

Shenzhen Lepower Optoelectronic Co., Ltd
Contact Now
    Buy cheap IP66 High Lumen LED Street Light 80W Type II SPD 20KV MW Driver Bridgelux Chip from wholesalers

    Buy cheap IP66 High Lumen LED Street Light 80W Type II SPD 20KV MW Driver Bridgelux Chip from wholesalers
    • Buy cheap IP66 High Lumen LED Street Light 80W Type II SPD 20KV MW Driver Bridgelux Chip from wholesalers
    • Buy cheap IP66 High Lumen LED Street Light 80W Type II SPD 20KV MW Driver Bridgelux Chip from wholesalers

    IP66 High Lumen LED Street Light 80W Type II SPD 20KV MW Driver Bridgelux Chip

    Ask Lasest Price
    Brand Name : LEPOWER
    Model Number : XH0102
    Certification : CE,Rohs,UL,,ETL
    Payment Terms : L/C, T/T
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

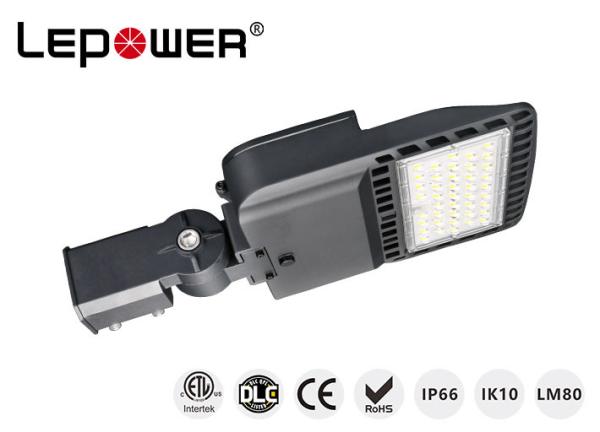

    IP66 High Lumen LED Street Light 80W Type II SPD 20KV MW Driver Bridgelux Chip

    LED Street light With IP66 LED module 80W Type II

    SPD 20KV MW driver for 5 years warranty


    SPEC


    No.NameFeatures
    1TypeLY-XH0101LY-XH0102LY-XH0103
    2Power40W-80W100-150W180W-240W
    3LED Qty.3000K / 4000K / 5000K / 6500K
    4Beam Angle150*70° 145*100° TypeIII TypeIV TypeV
    5Brand of Chips5050 LED
    6CCT42pcs84pcs126pcs
    7CRI>70 / >80
    8System Efficiency145-150Lm/W150-160Lm/W150-160Lm/W
    10IP RateIP66
    11VoltageAC 90-305V
    12Working Environment-20℃~50℃,20%~90% H.R
    13Storage Temperature-20℃~85℃,10%~90% H.R
    14Driver Efficacy90%
    15PF>0.95
    16Lifetime50000H
    17Size of Lamp494*310*84mm621*310*84mm769*320*93mm
    18Carton360*360*130mm475*360*130mm632*376*138mm
    19N.W.4.5KG5.5KG6.5KG


    LED Shoebox light application

    1. Outdoor basketball court;tennis court
    2. Badminton court ;the football field
    3. The school playground ;stadium
    4. Community leisure entertainment plaza;road lamp etc.

    5. Exterior or interior LED lighting for shoebox lighting, LED shoe box light, shoebox light fixtures,

    parking lot shoebox fixture, parking lot flood lighting.
