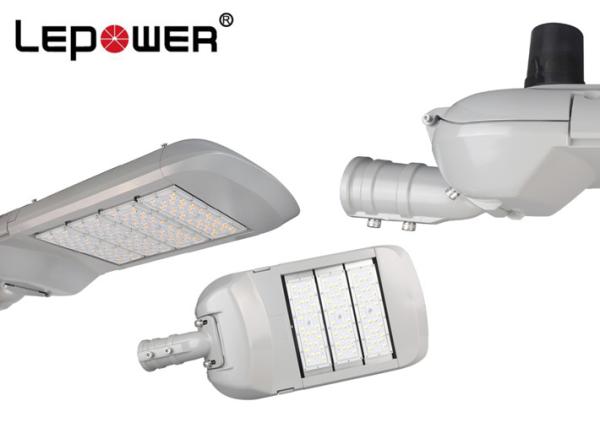

L18-100W-300W LED Street Light.
(3pin/5pin/7pin NEMA SOCKET/DAYLIGHT SENSOR/PHOTOCELL/LORA SYSTEM
OPTIONAL)
| Part Number | LY-L1802 | LY-L1803 | LY-L1804 | LY-L1805 | LY-L1806 |
| Wattage | 100W | 150W | 200W | 250W | 300W |
| Lumen Output | 15000-16000lm | 22500-24000lm | 30000-32000lm | 37500-40000lm | 45000-48000lm |
| Luminous Efficacy | 150-160lm/W | 155-160lm/W | 155-160lm/W | 155-160lm/W | 155-160lm/W |
| Input Voltage | 90-305V AC/200-240V AC 50-60Hz |
| Beam Angle | Typr I/Tpye II/Type III |
| CCT | 2800~6500K |
| CRI | ≥70 or ≥80 or ≥90 |
| IP & IK Rating | IP66&IK10 |
| Surge protection | Line earth 4KV, Line-line 10KV/20KV available |
| Power factor | >0.95 |
| Power efficiency | 90% | 90% | 90% | 90% | |
| THD | <15% |
| Working temperature | -40℃~50℃ 20%~90% H.R |
| Storage temperature | -40℃~85℃ 10%~90% H.R |
| Light pole size | Ø60mm |
| Housing material | AL6063-T5 |
| Housing color | Black or grey |
| Insulation | Class 2 |
| Options | PWM /DALI/1-10V/Timming/Daylight sensor/Nema 7 Pin socket |
| Lifespan | >50,000Hrs |
| N.W. | 6.7kg | 8.0kg | 9.3kg | 11.0kg | 12.2kg |
IES test report of LEPOWER street light
Trading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before
delivery.
2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
Quality Control
1. Before the order to be confirmed, we will check the material &
colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the
beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third
party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure
occurs under normal usage within warranty period, We will provide
free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire
connection, or anything other do not follow our instuction, We will
provide paid maintance within warranty period.
4. SAA/CE/RoHS/TUV/UL
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by
sea water?
Metal has high corrosion resistance.Besides, we do best on light
surface treatment,
electrostatic spraying and electrophoresis can effectively protect
our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better
via samples, we look on the long term and win-win cooperation.
Q4. We now have outdoor projects need to do the lighting design,can
you help us?
Sure we can, we are the leader of outdoor high power LED light
supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide
the IES files for you.
Q5.I have a street/high way project,what's your suggestion?
Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
Contact us now and get full quotation list.
We will take you a new better professional lighting.
