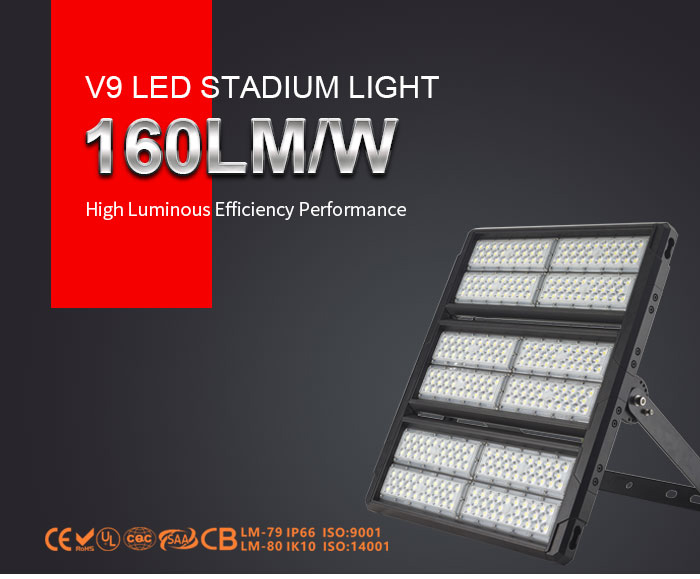

160lm/w CE TUV SAA UL LED Flood Light 100W 300W 500W 1200W
| Name | Features |
| Model | LY-HB0904 | LY-HB0908 | LY-HB0912 | LY-HB0918 | LY-HB0918 |
| Power | 200W | 400W | 600W | 800W/900W | 1000W |
| Efficiency | 115lm,155lm/w | 115lm,155lm/w | 115lm,155lm/w | 115lm,155lm/w | 110lm,155lm/w |
| Beam angle | 10° (110-115lm/w) 25°/ 40°/ 60°/ 90°/145*100°(>155lm/w) |
| CCT | 3000K / 4000K / 5000K / 6000K / 6500K |
| CRI | >70 |
| LEDs Brand | CREE 3535(For 10° ) Bridgelux 5050(For 25°/ 40°/ 60°/ 90°/145*100°) |
| LEDs Qty | 10°(88pcs), 112pcs | 10°(176pcs), 224pcs | 10°(264pcs), 336pcs | 10°(396pcs), 504pcs | 10°(396pcs), 504pcs |
| Input votage | AC90-305V 50/60HZ |
| IP Rate | IP66 |
| Driver | MOSO/HLG (AC90-305V) |
| Working Temperature | -40℃~50℃, 20%~90% H.R |
| Storage Temperature | -40℃~85℃,10%~90% H.R |
| Power Efficiency | 92% |
| Power Factor | >0.95 |
| Lifespan | >50,000 Hours |
| Housing Material | AL6063-T5 |
| Light size | 568*215*267mm | 568*439*478mm | 814*439*478mm | 814*663*478mm | 814*663*478mm |
| N.W. | 8KG | 16KG | 22KG | 32KG | 32KG |

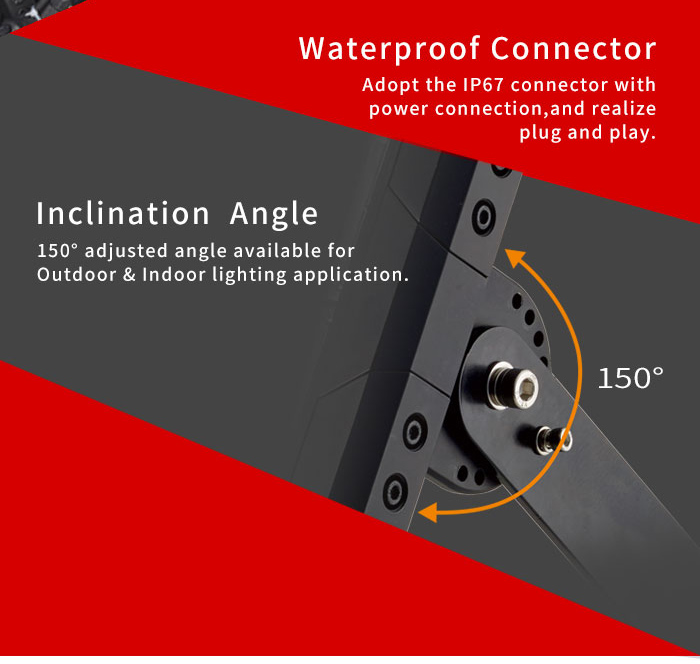

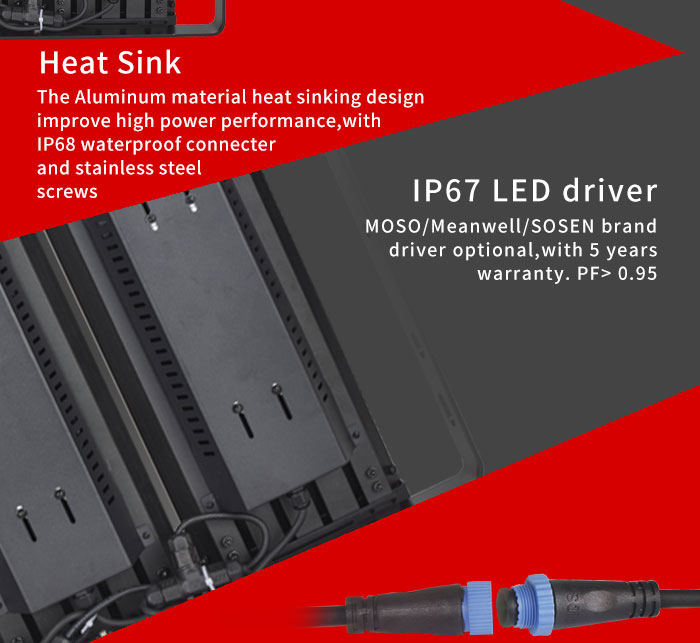

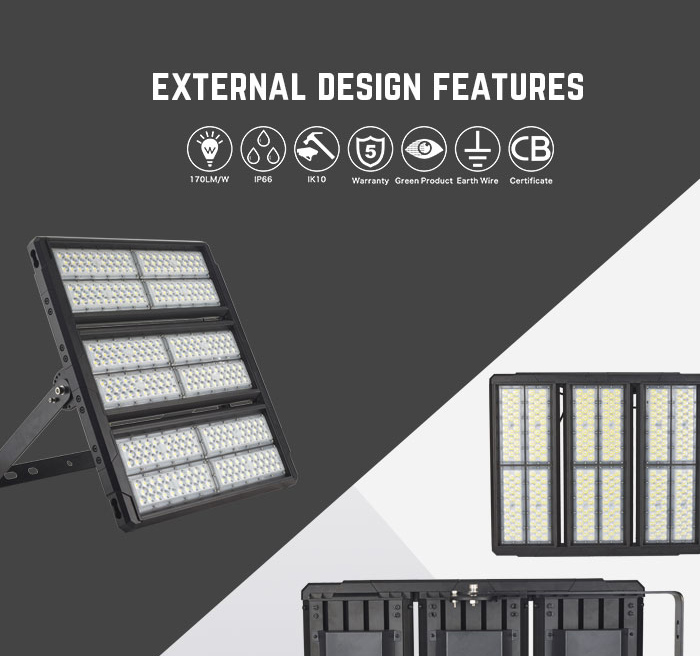

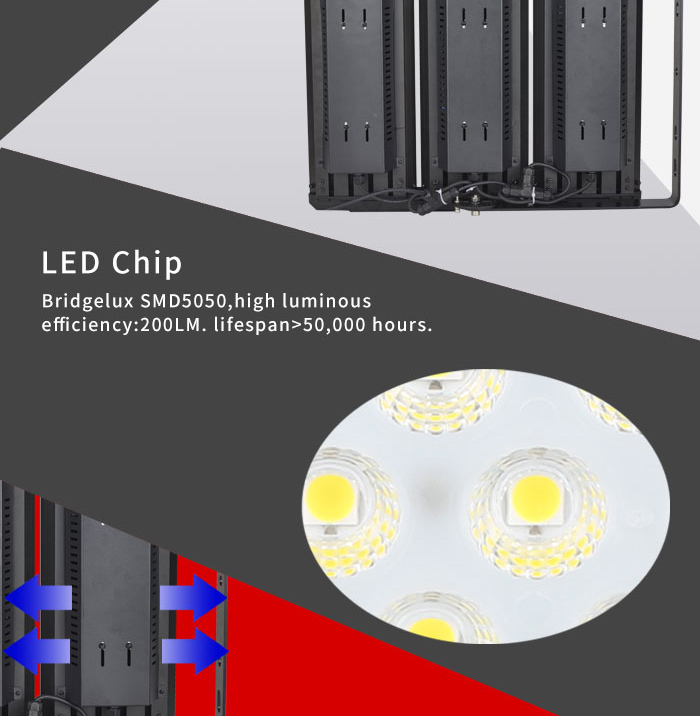

The detail pictures of led flood light 200w-1000w series.
The beam angle of LED flood light series
Trading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before
delivery.
2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
Quality Control
1. Before the order to be confirmed, we will check the material &
colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the
beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third
party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure
occurs under normal usage within warranty period, Weixiang will
provide free/rework new products based on the proof-documents
3. If failure or damage due to incorrect operation, wire
connection, or anything other do not follow our instuction, We will
provide paid maintance within warranty period.
4. SAA/CE/RoHS/TUV/UL
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by
sea water?
Aluminium alloy has high corrosion resistance.Besides,we do best on
light surface treatment,
electrostatic spraying and electrophoresis can effectively protect
our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better
via samples, we look on the long term and win-win cooperation.
Q4. We now have football stadium projects need to do the lighting
design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood
lights and LED design provider, our design teams can provide you
the best solution. And if you have the tech to make design by
yourself,we can provide the IES files for you.
Q5.I have a football/tennis court ,what's your suggestion?
Please give me the below information:
A:the area of the field
B:the loction and the height of the light poles
C:the requirement of the illumination/lux.
After sales service
Terrific after-sales service: 24 hours around the clock & 12 months
warranty
Life-long maintenance service for the product
For problematic items, We are ready to exchange them or replace
them with an equivalent upon our receipt of previous.
For all your inquiries, please contact us immediately, We will
reply you as soon as possible.
Contact us now and get full quotation list.
We will take you a new better professional lighting.
