Shenzhen LEPOWER LED Corp. Which own a ISO9001 16000m2 factory.
More than 80,000 pcs LEPOWER's LED street light installed worldwide!!!
We accept the OEM&ODM service. Welcome to contact to us now.

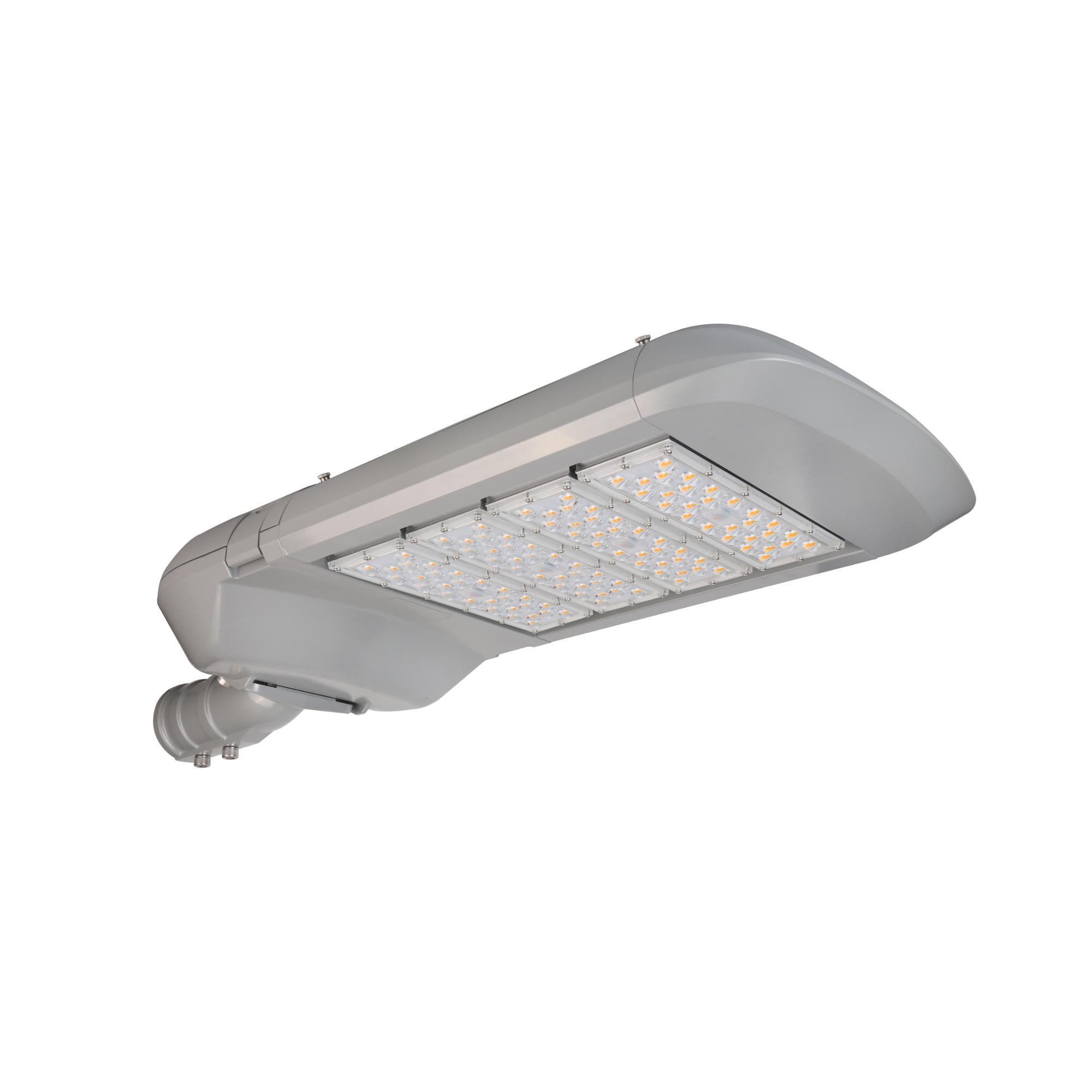

L18-100W-300W LED Street Light.
(NEMA SOCKET/DAYLIGHT SENSOR/PHOTOCELL/LORA SYSTEM OPTIONAL)
| Part Number | LY-L1802 | LY-L1803 | LY-L1804 | LY-L1805 | LY-L1806 |
| Wattage | 100W | 150W | 200W | 250W | 300W |
| Lumen Output | 15000-16000lm | 22500-24000lm | 30000-32000lm | 37500-40000lm | 45000-48000lm |
| Luminous Efficacy | 150-160lm/W | 155-160lm/W | 155-160lm/W | 155-160lm/W | 155-160lm/W |
| Input Voltage | 90-305V AC/200-240V AC 50-60Hz |
| Beam Angle | Typr I/Tpye II/Type III |
| CCT | 2800~6500K |
| CRI | ≥70 or ≥80 or ≥90 |
| IP & IK Rating | IP66&IK10 |
| Surge protection | Line earth 4KV, Line-line 10KV/20KV available |
| Power factor | >0.95 |
| Power efficiency | 90% | 90% | 90% | 90% | |
| THD | <15% |
| Working temperature | -40℃~50℃ 20%~90% H.R |
| Storage temperature | -40℃~85℃ 10%~90% H.R |
| Light pole size | Ø60mm |
| Housing material | AL6063-T5 |
| Housing color | Black or grey |
| Insulation | Class 2 |
| Options | PWM /DALI/1-10V/Timming/Daylight sensor/Nema 7 Pin socket |
| Lifespan | >50,000Hrs |
| N.W. | 6.7kg | 8.0kg | 9.3kg | 11.0kg | 12.2kg |
IES test report of LEPOWER street light
Quality Control
1. Before the order to be confirmed, we will check the material &
colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the
beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third
party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure
occurs under normal usage within warranty period, We will provide
free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire
connection, or anything other do not follow our instuction, We will
provide paid maintance within warranty period.
4. SAA/CE/RoHS/TUV/UL/CB
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by
sea water?
Metal has high corrosion resistance.Besides, we do best on light
surface treatment,
electrostatic spraying and electrophoresis can effectively protect
our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better
via samples, we look on the long term and win-win cooperation.
Contact us now and get full quotation list.
We will take you a new better professional lighting.
