Shenzhen LEPOWER LED Corp.Which own a ISO9001 16000m2 factory.
More than 80,000 pcs LEPOWER's LED street light installed worldwide!!!
We accept the OEM&ODM service. Welcome to contact to us now.

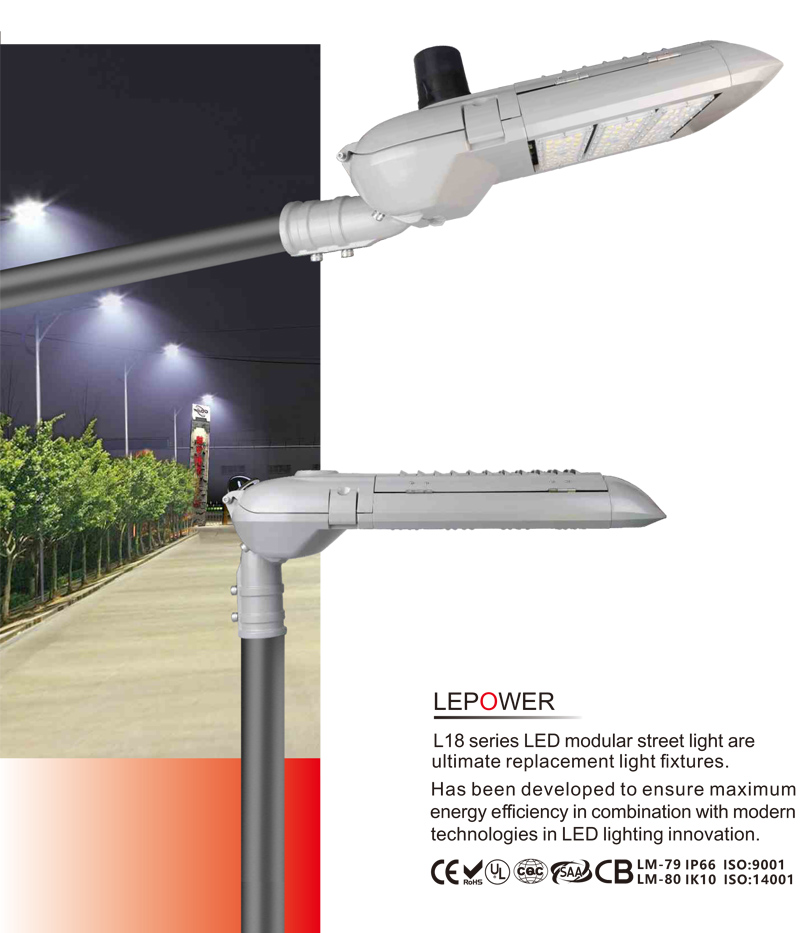

L18-100W-300W LED Street Light.
(NEMA SOCKET/DAYLIGHT SENSOR/PHOTOCELL/LORA SYSTEM OPTIONAL)
| Part Number | LY-L1802 | LY-L1803 | LY-L1804 | LY-L1805 | LY-L1806 |
| Wattage | 100W | 150W | 200W | 250W | 300W |
| Lumen Output | 15000-16000lm | 22500-24000lm | 30000-32000lm | 37500-40000lm | 45000-48000lm |
| Luminous Efficacy | 150-160lm/W | 155-160lm/W | 155-160lm/W | 155-160lm/W | 155-160lm/W |
| Input Voltage | 90-305V AC/200-240V AC 50-60Hz |
| Beam Angle | Typr I/Tpye II/Type III |
| CCT | 2800~6500K |
| CRI | ≥70 or ≥80 or ≥90 |
| IP & IK Rating | IP66&IK10 |
| Surge protection | Line earth 4KV, Line-line 10KV/20KV available |
| Power factor | >0.95 |
| Power efficiency | 90% | 90% | 90% | 90% | |
| THD | <15% |
| Working temperature | -40℃~50℃ 20%~90% H.R |
| Storage temperature | -40℃~85℃ 10%~90% H.R |
| Light pole size | Ø60mm |
| Housing material | AL6063-T5 |
| Housing color | Black or grey |
| Insulation | Class 2 |
| Options | PWM /DALI/1-10V/Timming/Daylight sensor/Nema 7 Pin socket |
| Lifespan | >50,000Hrs |
| N.W. | 6.7kg | 8.0kg | 9.3kg | 11.0kg | 12.2kg |

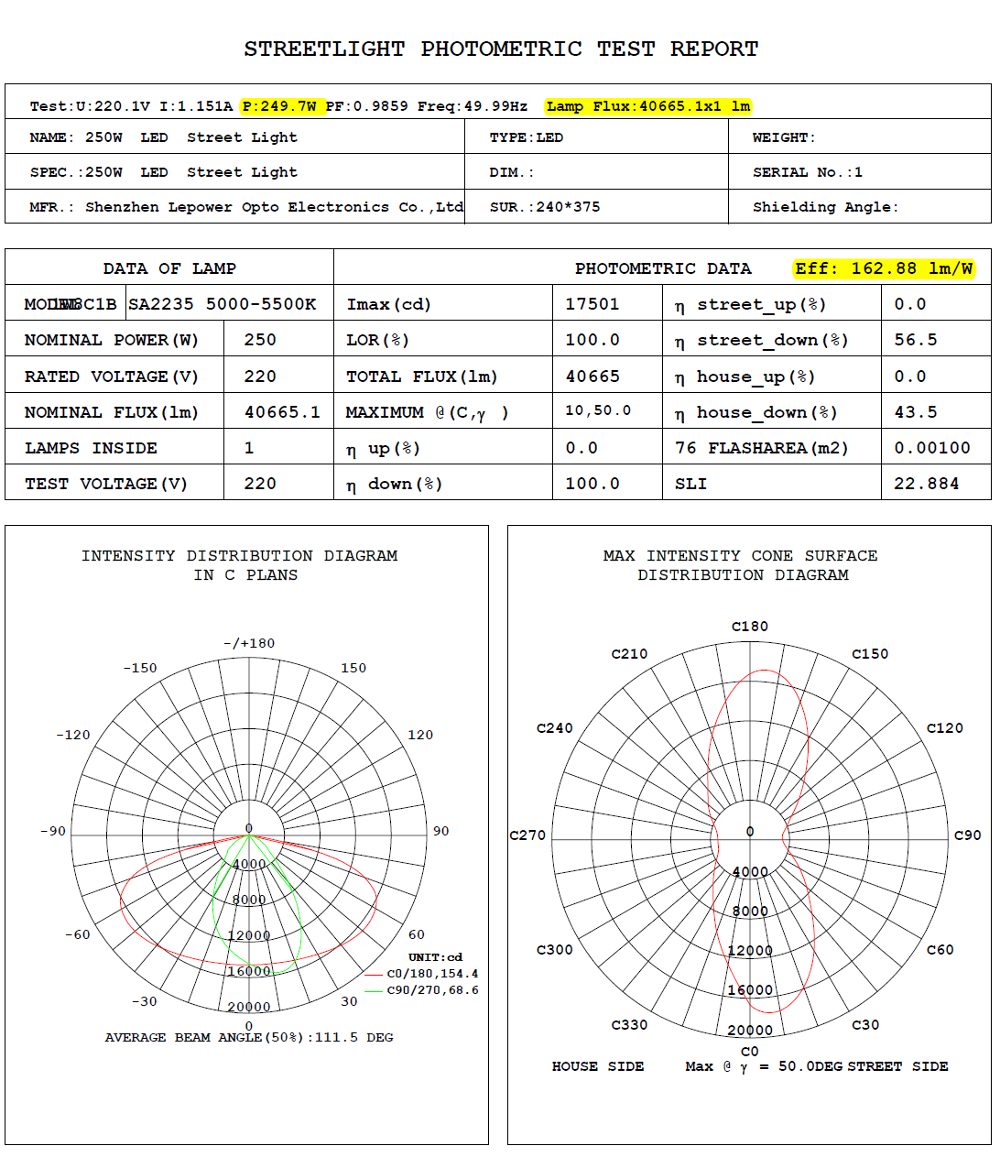

IES test report of LEPOWER street light
Why we reach 160lm/w for complete light?
*Adoption Lepower exclusive light source and ZAG Lens.
Compared with similar products,the luminous efficiency can rise 8%
and light transmittance up to 98%.
*LED chip reach 200lm/w.
*Great durable heat sink,ensure the junction temperature rise less
than 10°C.
*LEDs which packaged by multi-chips is high lumen, stable
performance, low light failure and no dead lights.
The pictures of our factory's building,office,certificate and
production line.
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by
sea water?
Metal has high corrosion resistance.Besides, we do best on light
surface treatment,
electrostatic spraying and electrophoresis can effectively protect
our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better
via samples, we look on the long term and win-win cooperation.
Q4. We now have outdoor projects need to do the lighting design,can
you help us?
Sure we can, we are the leader of outdoor high power LED light
supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide
the IES files for you.
Q5.I have a street/high way project,what's your suggestion?
Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
Contact us now and get full quotation list.
We will take you a new better professional lighting.
