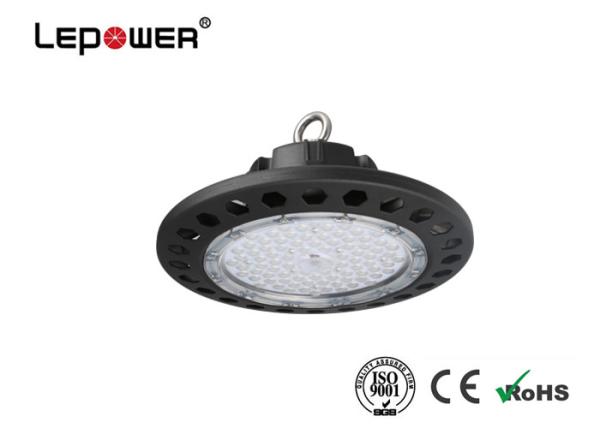

100W UFO High Bay Light 160lm/w,Meanwell HBG Driver For Warehouse
Lighting
Product Feature
1,Die-cast aluminum heat sink with high thermal conductivity.
2,Unique design with big heat sink area and beautiful appearance.
3, The paint handling to ensure pressure/wear/corrosion resistance
and not easy to change appearance color.
4,Adopt high quality HBG MeanWell Driver and Edison LED Chip, small
light decay, long service life.
5,CRI>70Ra, PF>0.95. High performance.
6,IP65 design, suitable for indoor and outdoor.
7,Small size and easy installation.
Power
| Model | Power | LED | LED quantity | Voltage | Lumen efficiency | Lumen |
| LY-GK06-80 | 80W | SMD5050 | 84pcs | AC 90-305V | 160lm/w | 12800lm |
| LY-GK06-100 | 100W | SMD5050 | 84pcs | AC 90-305V | 160lm/w | 16000lm |
| LY-GK06-120 | 120W | SMD5050 | 96pcs | AC 90-305V | 150lm/w | 18000lm |
| LY-GK06-150 | 150W | SMD5050 | 96pcs | AC 90-305V | 140lm/w | 21000lm |
Dimension
Product Attributes
| Name | Nominal value |
| Model | LY-GK07-100 |
| Power | 100W |
| CCT | 3000K/4000K/5000K/6000K |
| Beam angle | 60°/90°/120° |
| Chip brand | Bridgelux/San’an |
| Leds qty. | 84pcs |
| CRI | ≥70 |
| System Efficiency | 160Lm/W |
| Lumens | 16000lm |
| IP Rate | IP66 |
| Working voltage | AC 100-240V 50/60Hz
|
Application
It is widely used in high tent factory,workshop,warehouse,logistics
center, exhibition hall,gymnasium,
shipyards,highway toll station, supermarket, the farmer’s market
and other needs lighting space.
RFQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks ,It’s
according to the order.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pcs for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship Sample by DHL,FedEx and TNT . It usually takes
5-7 days to arrive. mass products are shipping by sea or airport.
Q5. How to proceed an order for led light?
A: Firstly ,let us know your requirements or application.
Secondly,We quote according to your requirements or our
suggestions.
Thirdly ,customer confirms the samples and places deposit for
formal order.
Fourthly, We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution including re-call according
to real situation.
