200w High Power Led Tunnel Light 130lm/w For Tunnel Lighting
Specification
|
| Name | LED Tunnel Light |
| Model | LY-TL0104 |
| Power | 200W |
| Voltage | AC 100-277V 50/60Hz |
| Body material | Aluminum Alloy |
| LED Chip | Bridgelux / San'an |
| Led quantity | 112pcs |
| CCT | 3000K / 4000K / 5000K / 6000K |
| CRI | Ra>70 |
| Luminous efficiency | 130lm/w |
| Lumen Flux | 26000lm |
| Power factor (PF) | >0.95 |
| THD | <20% |
| IP degree | IP66 |
| Beam angle | 145*90 degree |
| Working temperature | -40℃~50℃,20%~90% H.R |
| Lifetime | >50,000 hours |
| Warranty | 5 years |
Dimension
 | Size | 289*385*110mm |
| N.W. | 6.7kg |
| Carton(4pcs) | 345*435*242mm |
| G.W.(4pcs) | 7.7kg |

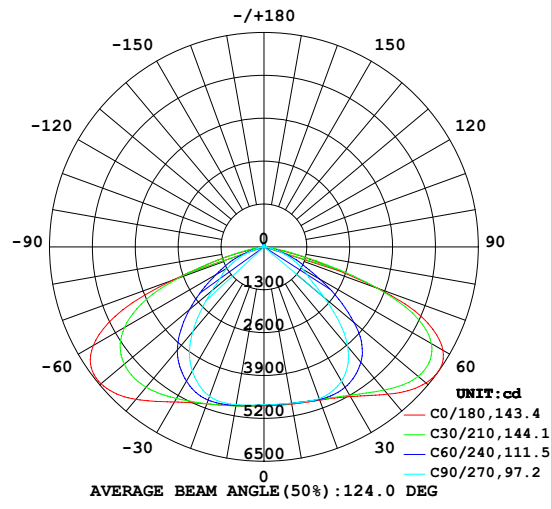

Light distribution
Why choose us--Lepower?
- Advanced equipments.We have many advanced equipments which import
from USA , Germany , Japan. That will make sure that our products
are produced in high standard and strict process
- Professional staffs. We have more than 300 staffs.The workers are
skilled.They know the products very well from a screw to the whole
product. They know the key point during production process and how
to deal with if there is a problem.
- Great after-sales. When you buy the products from us,you are in our
after-sales service. If you have any question or the goods have any
defect,you can contact with us in any time.We will give you our
best service in 24 hours.
- Good supply chain management . We have build a good relationship
with many international brand ( Bridgelux , San’an , , Osram ,
Meanwell , Moso , Herculux etc). That will help us get high quality
led chip,led driver,lens on time.
- Delivery on time. 5-7 days for samples,10-15 days for bulk order.

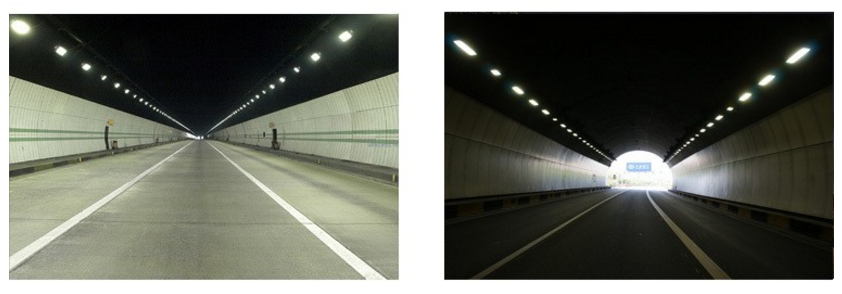

Application
This Product mainly applies to tunnel, bridge, large warehouses,
stadiums and kinds of manufacturing, engineering construction and
other places of large area flood lighting.
RFQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks ,It’s
according to the order.
Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q4. How to proceed an order for led light?
A: Firstly ,let us know your requirements or application.
Secondly,We quote according to your requirements or our
suggestions. Thirdly ,customer confirms the samples and places
deposit for formal order.
Fourthly, We arrange the production.
Q5: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
