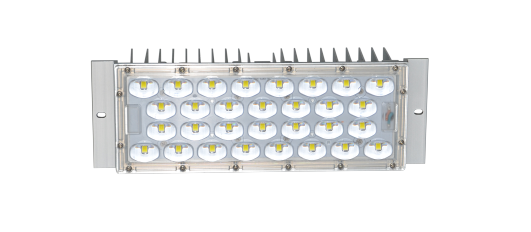

200lm / W 3000K 30w LED Module For Street Lighting 148*50 Degree Beam Angle

Technical parameter sheet

Name	Nominal Value(Tested without driver)
Model	LY-MSL5030-M1B0E1	LY-MSL5030-M1B0E1		LY-MSL5030-M1B0E1
Power	30W	40W		50W
Input Voltage	42-48V
Input Current	0.7A	0.9A		1.1A
CCT	3000K
Luminous Efficiency	198Lm/W	190Lm/W		185Lm/W
Luminous Flux	5940LM	7600LM		8250LM
CRI	>45
Beam Angle	San’an / Bridgelux
Brand of Chips	30PCS
LED Qty.	8778
Lens Arrangement	148*50°
IP Rate	IP66
Working Environment	-40℃~50℃,20%~90% H.R
Storage Temperature	-40℃~85℃10%~90% H.R.
Life time	50000H
Body material	Aluminum+ optical PC
Size of Lamp	300*100*63mm		±5mm
Inner package(2PCS/box)	300*105*80mm		±5mm
Package Size (20PCS/carton)	436*315*430mm		±5mm
Net weight	0.92kg		±0.1kg

Dimension

IES file

Product Feature

• High efficiency:160-180lm/W,50% higher than ordinary street light,compared with Sodium lamp, 80% energy saved
• Eco-friendly:no lead,mercury and other substances to make bad effect on the environment.And no UV, IR and other harmful substances to human health.Compared with common street light,it has no glare and without light pollution to surroundings.
• Long lifespan:5-8 times lifespan than the ordinary lamp, save maintenance cost.
• Super thermal Dissipation:Great heat sink made of aluminum alloy with high thermal conductivity, significantly reduce the temperature rise, junction temperature rise will be less than 10 degree, effectively extending the lamp life.
• Great reliability:No start-up delay,constant current drive,not affected by power fluctuations,no flicker.
• Easy assembly and disassembly:Just install the lamp body to its place with screws, and loosen the screws when repair.

Typical Application

This module is a part of a whole lamp,it can be matched with many different housing to be different lamps and used in many different conditions.

• It can be matched with high bay light housing to be led industrial light. The light can be used in warehouse,workshop,indoor parking lot,indoor stadium etc.
• It can be matched with flood light housing to be led flood light.The light can be used in outdoor tennis court,basketball court,badminton court,outdoor parking lot,football field lighting,golf area lighting etc.
• It can be matched with street light housing to be led street light. The light can be used in crossroads for road lighting.
• It can be matched with high mast light housing to be high mast light. The light can be used in park lighting,tower lighting,port lighting etc.

Shenzhen Lepower Opto Electronics Corp., Ltd

(Abbreviation"Lepower Corp", stock code:838452 )founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power led encapsulation, optic design and LED lamp development, has honored as China national high-tech enterprise, Chinese AAA-class Credit firm and listed in TOP 100 Companies in China LED Lighting application industry.

Lepower Corp,with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R & D and innovation capability in China’s LED industry.Lepower Corp has got several national patents and more than 30 utility model patents, is able to offer customers professional LED lighting solutions.

Lepower Corp branded products, including high power led light source,Calculus optic lens, LED modules and special outdoor LED lamps, have been sold all over the world, and are enjoying great reputation with its professional quality. Lepower Corp strictly carry out ISO9001:2008 quality management system, most products have passed several tests by authorized Lab, and got CE, ROHS, LM-80,LM-79, CQC, TUV GS, UL,SAA,CB and C-tick certification. Lepower Corp is a lsoa member of ZHAGA Union.

Our Main Products Line(all reach 160lm/w):
1. LED Modules: 30W 40W 50W 60W
2. LED Street Light: 30W-300W
3. LED Flood Light: 50W-1200W
4. LED High Bay Light:
