Bridgelux Chip LED Street Light Module Super Thermal Dissipation High Security

Product Categories

Shenzhen Lepower Optoelectronic Co., Ltd

Contact Now

Bridgelux Chip LED Street Light Module Super Thermal Dissipation High Security

Ask Lasest Price
Brand Name :	LEPOWER(Shenzhen)
Model Number :	LY-MSL5028-70B0F3
Certification :	CE RHOS UL TUV CB SAA
Price :	10-20USD/pcs
Payment Terms :	Western Union, T/T
Supply Ability :	20000pcs per month
Delivery Time :	5-7days

Add to Cart

Product Details
Company Profile

Bridgelux Chip LED Street Light Module Super Thermal Dissipation High Security

Feature:

■ High efficiency :50% higher than ordinary highbay light,compared with Sodium lamp, 80% energy saved.
■ Green product : no lead,mercury and other substances to make bad effect on the environment.And no UV, IR and other harmful substances to human health.Compared with common highbay light,it has no glare and without light pollution to surroundings.
■ Long lifespan:5-8 times lifespan than the ordinary lamp, save maintenance cost.
■ Super thermal Dissipation:Great heat sink made of aluminum alloy with high thermal conductivity, significantly reduce the temperature rise, junction temperature rise will be less than 10 degree, effectively extending the lamp life.
■ Great reliability:No start-up delay,constant current drive,not affected by power fluctuations,no flicker.
■ Easy assembly and disassembly:Just install the lamp body to its place with screws, and loosen the screws when repair.
■ High security : external voltage of module is safe,which will prevent leakage and electric shock efficiently.
■ Zero air gap technology :light lens and sources all adopt zero air gap technology based on self-adaptive colloidal ,achieves zero light loss.
■ Perfect Light Distribution Solution:Adoption of integrated peanut shell optic lens, meet the photometric requirements of road lighting design standards,enhance the brightness , illumination uniformity and geometric utilization.
■ Pluggable design of module can make us easier to install and repair. the least spares and convenient for us to stocking.
■ When installed in the street,there are vents between modules to facilitate thermal dissipation by air convection and automatic cleaning of light.
■ Green products which fit ROHS.

Technical parameter

No	Name	Nominal Value(Tested without driver)
1	Type	LY-MSL3063-70B5F6	LY-MSL3063-70B5F6	LY-MSL3063-70B5F6		LY-MSL3063-70B5F6
2	Power	30W	40W	50W		60W
3	Input Voltage	36.15V	37.4V	38.38V		39.49V
4	Input Current	0.85A	1.1A	1.3A		1.55A
5	CCT	4500K	4500K	4500K		4500K
6	Luminous Efficiency	135.59Lm/W	124.91Lm/W	117.66Lm/W		108.83Lm/W
7	Luminous Flux	4166lm	5140lm	5870lm		6662lm
8	CRI	＞70	＞70	＞70		＞70
9	Beam Angle	150*70°
10	Brand of Chips	Bridgelux(17*34mil)
11	LED Qty.	60pcs
12	IP Rate	IP66
13	Working Environment	-40℃~50℃,20%~90% H.R
14	Storage Temperature	-40℃~85℃10%~90% H.R.
15	Life time	50000H
16	Body material	Aluminum+optical PC
17	Size of Lamp	3007048.5mm			±5mm
18	Inner package(2PCS/box)	3066778mm			±5mm
19	Package Size (40PCS/carton)	318355328mm			±5mm
20	Net weight	0.52kg			±0.1kg

Plane illuminance & Distribution Curve

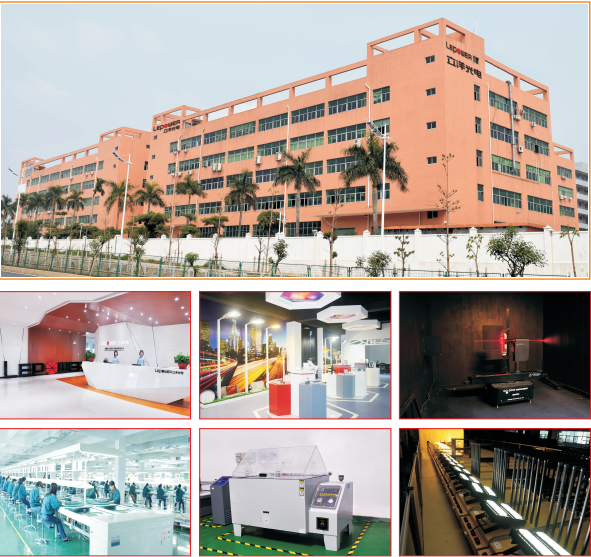

Company profile:

Q&A
Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks ,It’s according to the order.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pcs for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship Sample by DHL,FedEx and TNT . It usually takes 5-7 days to arrive. mass products are shipping by sea or airport.

Q5. How to proceed an order for led light?

A: Firstly ,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly ,customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
