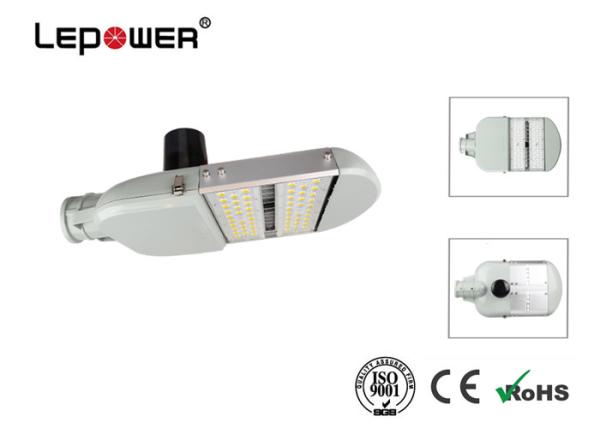

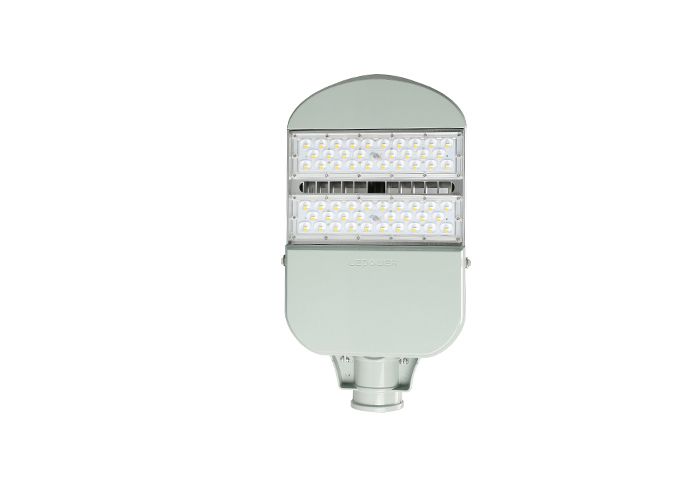

70w Smart Led Street Light For Smart City Lighting Save Energy 70%
Feature of Lepower smart street light
- LEDs which packaged by multi-chips is high lumen, stable
performance, low light failure and no dead lights.
- Adoption Lepower exclusive light source and ZAG Lens.Compared with
similar products,the luminous efficiency can be rised 8% and light
transmittance up to 98%.
- High lumen output. The original lumen of LED is 200lm/w,the lumen
output of complete lamp is 150-160lm/w,It can save more energy
(60%-70%) than normal led lamps and traditional lamps.
Smart control.It can be matched with smart control system,photocell
to achieve dimming, timer,light control,remote turn on / off,
remote monitoring,GPS Positioning.
NEMA base.The base meets the NEMA standard. It is 7 pin base,better
than normal 5 pin base or 3 pin base.
Good heat dissipation.Adoption of fin structure which is thick top
and thin buttom,use of air convection“Pull Down”effect, quickly
dissipate thermal.thin junction between the heat sink and
fins,quickly conduct heat,temperature rise less than 10 ℃
Tool-free maintenance.It is designed with buckle. That makes the
street light can be opened easily. No screw, No screwdriver
required, You can open the driver box by your hand.
Data catalog
Name: 70W intelligent led street light
Model: LY-L1202
Power: 70w
Voltage: AC 100-277V 50/60Hz
Body material: Aluminum
LED Chip: Bridgelux / San'an
Led quantity: 56 pcs
CCT: 3000K / 4000K / 5000K / 6000K
CRI: Ra>70 (80Ra optional)
Luminous efficiency: >160LM/W
Lumen Flux: >11200LM
Power factor (PF): >0.95
THD: <20%
IP degree: IP66
Beam angle: 150*70 degree
Working temperature: -40℃~50℃,20%~90% H.R
Lifetime : >50,000 hours
Warranty: 5 years
Packing information
| Size | 501*273*98mm |
| N.W. | 4.5kg |
| Carton (2pcs) | 550*325*260mm |
| G.W. (2pcs) | 10kg |

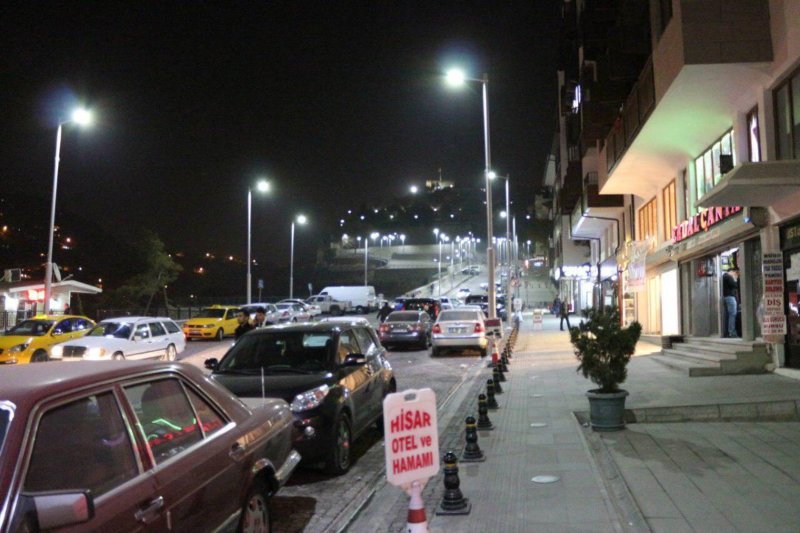

Application
It is widely used in highway,urban roads and secondary
roads,stadium,sidewalk, residential area,industry sites, square
area,park ,school ,villa and courtyard,etc.street lighting.
RFQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks ,It’s
according to the order.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pcs for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship Sample by DHL,FedEx and TNT . It usually takes
5-7 days to arrive. mass products are shipping by sea or airport.
Q5. How to proceed an order for led light?
A: Firstly ,let us know your requirements or application.
Secondly,We quote according to your requirements or our
suggestions.
Thirdly ,customer confirms the samples and places deposit for
formal order.
Fourthly, We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
