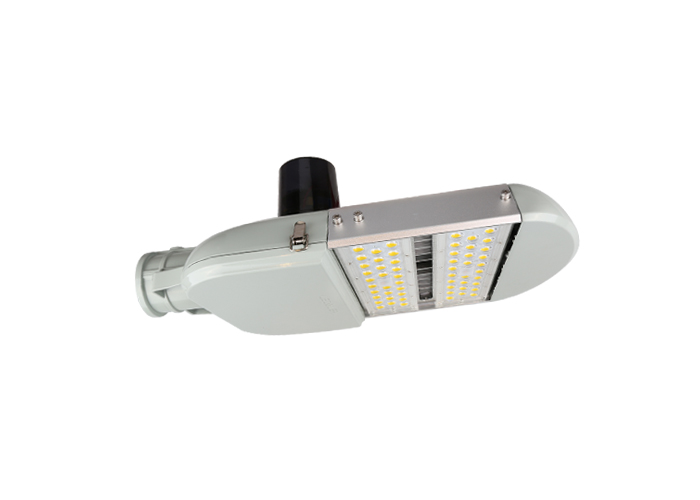

90w Smart Led Street Light Photocell / Timer With IP66 5 Years Warranty

Feature of smart street light

• High lumen output. The original lumen of LED is 200lm/w,the lumen output of complete lamp is 150-160lm/w,It can save more energy (60%-70%) than normal led lamps and traditional lamps.

• Smart control.It can be matched with smart control system,photocell to achieve dimming,timer,light control,remote turn on / off, remote monitoring,GPS Positioning.

• Good heat dissipation.Adoption of fin structure which is thick top and thin buttom,use of air convection“Pull Down”effect, quickly dissipate thermal.thin junction between the heat sink and fins,quickly conduct heat,temperature rise less than 10 ℃

• NEMA base.The base meets the NEMA standard. It is 7 pin base,better than normal 5 pin base or 3 pin base.

• Tool-free maintenance.It is designed with buckle. That makes the street light can be opened easily. No screw, No screwdriver required, You can open the driver box by your hand.

Data information

Electrical Specifications

Mechanical Specifications

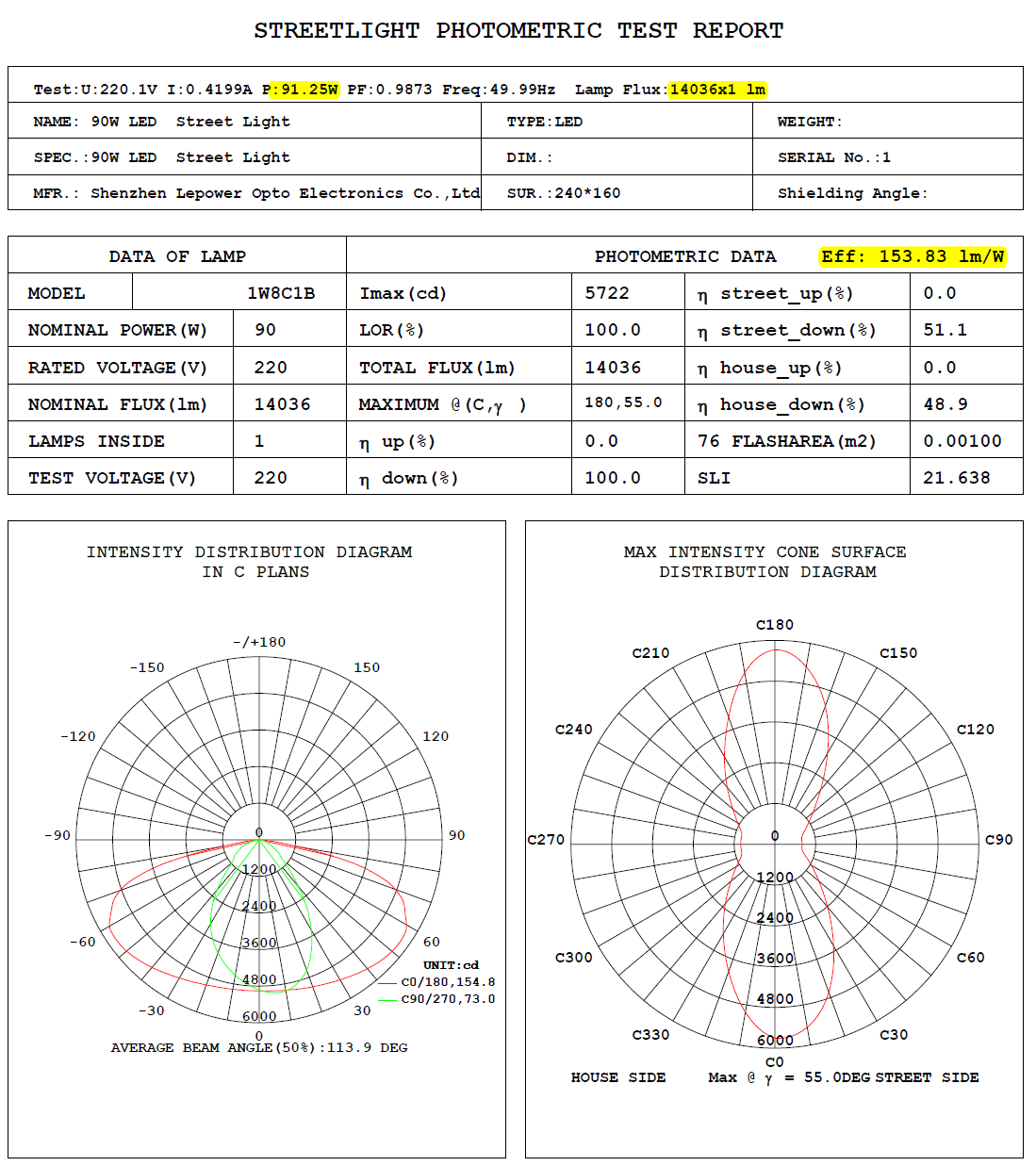

IES for Dialux

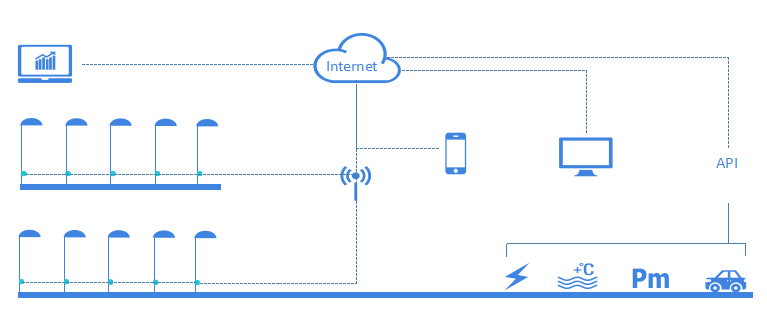

Smart control


It can achieve remote turn on / off, remote monitoring, 0-10v dimming,photocell,timer. one gateway can control about 3km led street light.

Packing information

1. Size: 501*273*98mm
2. N.W.: 4.5kg
3. Carton (2pcs): 550*325*260mm
4. G.W. (2pcs): 10kg

Shipping information

• Deliever time:3-7 days for samples,5-15 days for batch goods.

• Shipping port :Shenzhen , China (mainland)

• FedEx/DHL/UPS for samples , Door-to-Door

• By Air or by Sea for batch goods , for FCL ,Airport receiving

• Customers specifying freight forwarders or negotiable shipping methods

Application
It is widely used in high pole parking lot lighting, car dealership lighting, roadways, pathways and perimeter.

Shenzhen Lepower Opto Electronics Corp., Ltd

(Abbreviation"Lepower Corp", stock code:838452 )founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power led encapsulation, optic design and LED lamp development, has honored as China national high-tech enterprise, Chinese AAA-class Credit firm and listed in TOP 100 Companies in China LED Lighting application industry.

Lepower Corp,with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R & D and innovation capability in China’s LED industry.Lepower Corp has got several national patents and more than 30 utility model patents, is able to offer customers professional LED lighting solutions.

Lepower Corp branded products, including high power led light source,Calculus optic lens, LED modules and special outdoor LED lamps, have been sold all over the world, and are enjoying great reputation with its professional quality. Lepower Corp strictly carry out ISO9001:2008 quality management system, most products have passed several tests by authorized Lab, and got CE, ROHS, LM-80,LM-79, CQC, TUV GS, UL,SAA,CB and C-tick certification. Lepower Corp is a lsoa member of ZHAGA Union.

Our Main Products Line(all reach 160lm/w):
1. LED Modules: 30W 40W 50W 60W
2. LED Street Light: 30W-300W
3. LED Flood Light: 50W-1200W
4. LED High Bay Light:
