DC 32 - 38V LED Flood Light Module Aluminum Body IP66 Waterproof Customized

    Buy cheap DC 32 - 38V LED Flood Light Module Aluminum Body IP66 Waterproof Customized from wholesalers

    Buy cheap DC 32 - 38V LED Flood Light Module Aluminum Body IP66 Waterproof Customized from wholesalers
    • Buy cheap DC 32 - 38V LED Flood Light Module Aluminum Body IP66 Waterproof Customized from wholesalers
    • Buy cheap DC 32 - 38V LED Flood Light Module Aluminum Body IP66 Waterproof Customized from wholesalers

    DC 32 - 38V LED Flood Light Module Aluminum Body IP66 Waterproof Customized

    Ask Lasest Price
    Brand Name : LEPOWER(Shenzhen)
    Model Number : LY-MH01
    Certification : CE RHOS UL TUV CB SAA
    Price :
    Payment Terms : Western Union, T/T
    Supply Ability : 20000pcs per month
    • Product Details
    • Company Profile

    DC 32 - 38V LED Flood Light Module Aluminum Body IP66 Waterproof Customized

    30W / 40W / 50W / 60W Led Module Aluminum Body DC 32-38V With IP66 Proof


    Technical parameter


    NameNominal Value(Tested without driver)
    TypeLY-MH01-30LY-MH01-40LY-MH01-50LY-MH01-60
    Power30W40W50W60W
    Input VoltageDC 32-38V
    Input Current0.9A1.15A1.4A1.6A
    CCT3000K / 4000K / 5000K / 6000K
    LED efficiency180lm/w
    System Efficiency>160Lm/W>150Lm/W>140Lm/W>130Lm/W
    Luminous Flux>4800lm>6000lm>7000lm>7800lm
    CRIRa>70 (80Ra optional)
    Beam Angle25°/40°/60°/90°
    Brand of ChipsSan’an / Bridgelux
    LED Qty.28pcs
    IP RateIP66
    Working Environment-40℃~50℃,20%~90% H.R
    Storage Temperature-40℃~85℃10%~90% H.R.
    Life time>50,000 Hours
    Body materialAluminum+optical PC

    Product Feature

    1. Using high quality USA Bridgelux chips
    2. Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance

    3. Aluminum heat sink to keep good heat transfer

    4. 300*75*54mm CSA standard size, which can adapt to many light housings;

    5. Wide power range: 30W, 40W, 50W,60W

    6. Multiple lighting distributions available: 25°/40°/60°/90°

    7. LM80 testing reports available

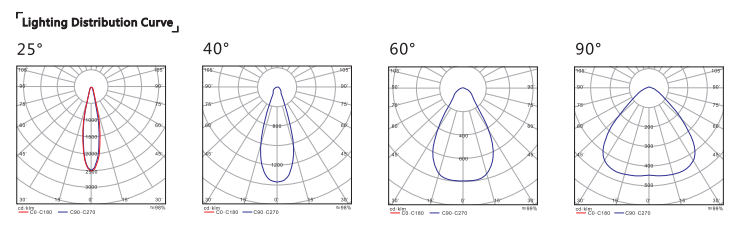

    Plane illuminance & Distribution Curve


    IP waterproof and Aging test


    The module will be put in the water and light up for 4 hours to keep the good waterproof performance.



    • Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
    • We will be tracing the different phase of production from the beginning.
    • Every LED lights quality checked & cleaned before packing.
    • Before delivery clients could send one QC or point the third party to check the quality.
    • We will try our best to help clients when problem occurred.

    Q&A

    Q1. Are you factory direct?

    A: As a professional led lighting manufacturer, Lepower established in 2008, specilize in led module, led street light,led flood light and other led lights. Our products are mainly exported to Europe, South America,South-east Asia etc countries and area.

    Q2. Do you have a special price and service for wholesale?
    A: Lepower is keeping search a long term business cooperation with our clients, As a professional led lighting manufacturer, we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product is our responsible.

    Q3. What payment methods can I use? And how secure is my payment?
    A: Lepower accept your payment through Paypal, T/T,Western Union,etc

    Q4. How long does it take for my order to be shipped? And how long can I receive it?
    A: Generally, your order will be shipped within 3-7 working days after your payment received by us.

    Q5. How about the warranty?
    A: We offer 5 years warranty. All products are gone through strict test by our experienced QC before shipment.
