50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC

    Buy cheap 50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC from wholesalers

    Buy cheap 50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC from wholesalers
    • Buy cheap 50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC from wholesalers

    50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC

    Ask Lasest Price
    Brand Name : LEPOWER(Shenzhen)
    Model Number : LY-ML14
    Certification : CE RHOS UL TUV CB SAA
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 20000pcs per month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    50 Watt LED Street Light Module DC42 - 48V LED Module With Optical PC

    50 Watt LED Street Light Module DC42-48V LED Module With Optical PC


    Product characteristic


    1. Good Heat Dissipation


    Adoption of fin structure which is thick top and thin buttom,use of air convection“Pull Down”effect, quickly dissipate thermal.thin junction between the heat sink and fins,quickly conduct heat,temperature rise less than 10 ℃

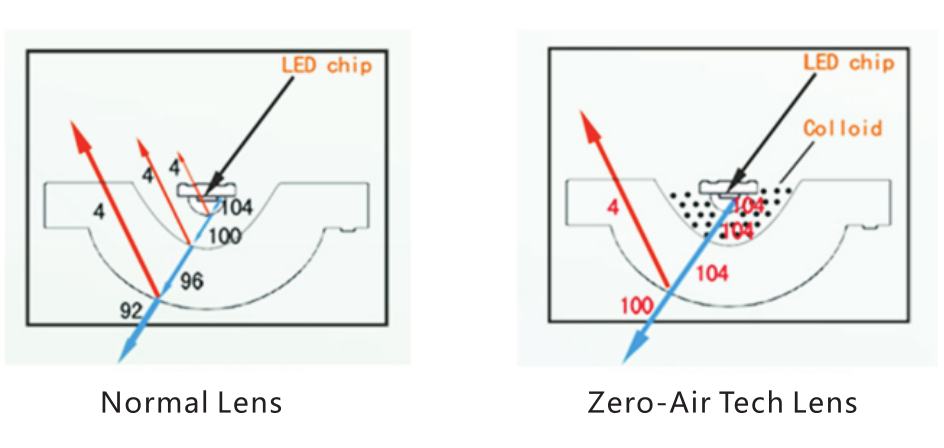

    2. High Transmittance Rate of Lens



    Adoption of Lepower developed “adapable collid tech” to achieve “zero air” space between LED and Lens, make up the loss of light reflected through different media,almost zero light loss.


    3. Great Reliability


    Adoption the led light source of multi-chip encapsulation,chips first connection parallel then in serial, that means each chip can work independently.Whether open or short circuit failure will not affect the voltage and current distribution for other led,thus ensuring the light source work normally,greatly enhanced the module reliability.




    Date sheet


    Electrical Specifications

    ModelPowerInput VoltageCCTCRILuminous
    Efficiency
    Flux
    LY-ML1450WDC 42-48V3000K
    4000K
    5000K
    6000K
    ≥70160lm/w8000lm

    Mechanical Specifications


    Beam AngleLensLight distribution

    Lifetime

    (hours)

    WarrantyOperating
    Temperature
    Storage
    Temperature
    150*70Optical + PCType II>50,0005 years-40~50 ℃-40~85 ℃

    IES test report


    Application


    It is a standard size 300*75*50mm . It can be matched with many different housing.


    Quality Control

    • Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
    • We will be tracing the different phase of production from the beginning.
    • Every LED lights quality checked & cleaned before packing.
    • Before delivery clients could send one QC or point the third party to check the quality.
    • We will try our best to help clients when problem occurred.
