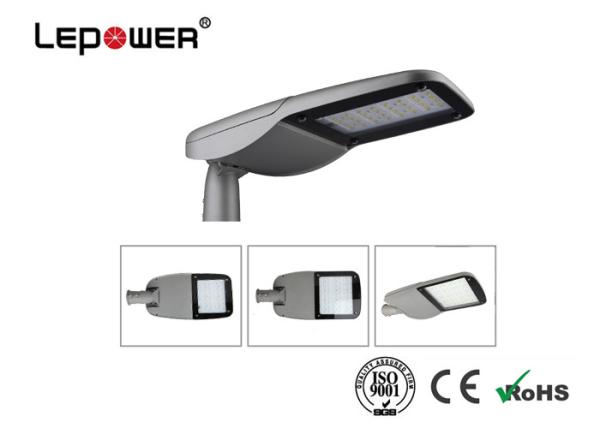

180w Outdoor Led Street Light 19500lm Replace 400w HPS Or HID For
Public Lighting
Feature of Product
- Special optical lens with tempered glass cover,make the good light
distribution and perfect proof (water proof and dust proof)
With Surge Projector to protect lamp from up to 10KV/10KA.
Knob type, easy installation and maintenance by turn the switch do
not need tools to open or close the light cap.
Full die-cast aluminum housing to prevent guano.
The mounting angle is adjustable. The lamp can be adjusted ±15
degree.
It can be matched with photocell , smart controller, timer,0-10V
dimming,DALI etc.
Our advantage
- Good supply chain management . We have build a good relationship
with many international brand ( Bridgelux , San’an , , Osram ,
Meanwell , Moso , Herculux etc). That will help us get high quality
led chip,led driver,lens on time.
Comprehensive service. We have a subsidiary for optical lens and a
subsidiary for smart lighting system(Radar induction,smart street
light with LoRA technology). All of this can help us to meet
various needs from our customer.
Professional staffs. We have more than 300 staffs.The workers are
skilled.They know the products very well from a screw to the whole
product. They know the key point during production process and how
to deal with if there is a problem.
Advanced equipments.We have many advanced equipments which import
from USA , Germany , Japan. That will make sure that our products
are produced in high standard and strict process.
Product attribute
| Name | 180W outdoor led street light |
| Model | LY-L20-180 |
| Power | 180W |
| Voltage | AC 100-277V 50/60 Hz |
| Body material | Die-casting aluminum + Tempered glass |
| LED Chip | Bridgelux / San'an |
| Led quantity | 80pcs |
| CCT | 3000K / 4000K / 5000K / 6000K |
| CRI | Ra>70 (80Ra optional) |
| Luminous efficiency | 110lm/w |
| Lumen Flux | 19500lm |
| PF | >0.95 |
| THD | <20% |
| IP degree | IP66 |
| Beam angle | 150*70 degree |
| Operating temperature | -40℃~50℃,20%~90% H.R |
| Lifetime | >50,000hours |
| Warranty | 5 years |
Packing information
| Size | 692*337*116mm |
| N.W. | 8 kg |
| Carton (2pcs) | 750*390*320mm |
| G.W. (2pcs) | 17 kg |
Application

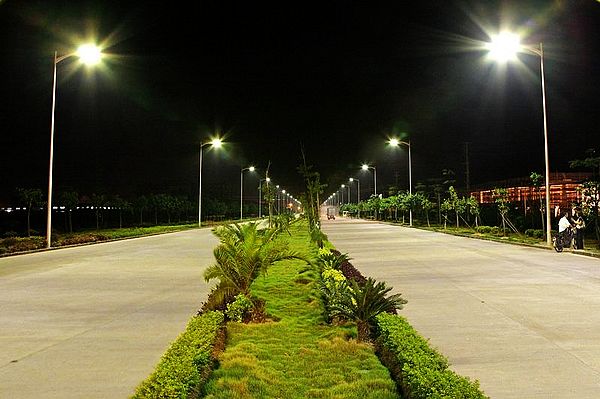

It is suitable for the street lighting at highways, urban roads and
secondary roads, stadiums, sidewalks, residential areas, industrial
areas, squares, parks, schools, villas, gardens and other places.
RFQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks ,It’s
according to the order.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pcs for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship Sample by DHL,FedEx and TNT . It usually takes
5-7 days to arrive. mass products are shipping by sea or airport.
Q5. How to proceed an order for led light?
A: Firstly ,let us know your requirements or application.
Secondly,We quote according to your requirements or our
suggestions.
Thirdly ,customer confirms the samples and places deposit for
formal order.
Fourthly, We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
