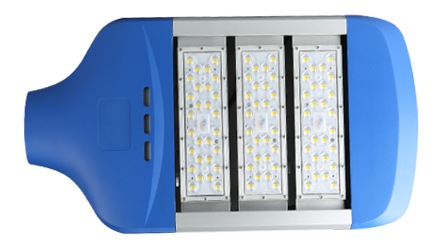

Outdoor Road Lighting 120w Module Led Street Light Aluminum Heat Sink Replace 400W HPS

Advantage of lepower street light

1. High lumen output. The original lumen of LED is 200lm/w,the lumen output of complete lamp is 150-160lm/w,It can save more energy (60%-70%) than normal led lamps and traditional lamps.
2. Adoption Lepower exclusive light source and ZAG Lens.Compared with similar products,the luminous efficiency can be rised 8% and light transmittance up to 98%.
3. With Excellent exterior design, the lamp is waterproof and dustproof, protecting rate: IP66.
4. Honeycomb briquette effect heat dissipation principle, best thermal management system;
5. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
6. The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
7. Minimum 70 CRI; Ra80 optional
8. 5 years limited warranty.

Product parameter

Electrical Specifications

Mechanical Specifications

IES test report ( light distribution, Lumen, Luminous efficiency etc)

Installation procedure

• Connect the wires to the AC wire,Make sure that Yellow-green ground wire grounding reliably.
• Remove the screws of back cover,open the back and remove the back cover.
• Through the poles into the adapter,tighten the screws firmly on the lamp poles.
• Put the back cover back and tighten the screws.

Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.

Shenzhen Lepower Opto Electronics Corp., Ltd

(Abbreviation"Lepower Corp", stock code:838452 )founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power led encapsulation, optic design and LED lamp development, has honored as China national high-tech enterprise, Chinese AAA-class Credit firm and listed in TOP 100 Companies in China LED Lighting application industry.

Lepower Corp,with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R & D and innovation capability in China’s LED industry.Lepower Corp has got several national patents and more than 30 utility model patents, is able to offer customers professional LED lighting solutions.

Lepower Corp branded products, including high power led light source,Calculus optic lens, LED modules and special outdoor LED lamps, have been sold all over the world, and are enjoying great reputation with its professional quality. Lepower Corp strictly carry out ISO9001:2008 quality management system, most products have passed several tests by authorized Lab, and got CE, ROHS, LM-80,LM-79, CQC, TUV GS, UL,SAA,CB and C-tick certification. Lepower Corp is a lsoa member of ZHAGA Union.

Our Main Products Line(all reach 160lm/w):
1. LED Modules: 30W 40W 50W 60W
2. LED Street Light: 30W-300W
3. LED Flood Light: 50W-1200W
4. LED High Bay Light:
