Outdoor High Quality LED Street Light 200W High Power Led Lighting Fixture

Parameter sheet

	Model	LY-L0304
	Power	200W
	Input Voltage	AC 100-277V 50/60Hz
	CCT	2200K / 3000K / 4000K / 5000K
	CRI	70Ra (80Ra optional)
	Luminous Efficiency	150lm/w
	Flux of Lamp (Lumen)	30000lm

Data list

• Chip Brand: Bridgelux /San'an
• LED quantity: 112pcs
• PF>0.95
• THD<20%
• Beam angle: 150*70
• IP 66
• 5 years guarantee

• Size of light pole: φ60mm

• Lifespan: >50,000 hours

• Working Environment: -40℃~50℃,20%~90% H.R

• Size: 673*328*96mm

• N.W.: 8.6kg

• Carton: 725*380*150mm

• G.W.: 9.5kg

Feature

1. Nice appearance and non-fouling properties, Protection class IP66.
2. Green environmental protection, no UV light and infrared radiation, nomercury pollution.
3. Low energy consumption,matching high efficiency constant-current driver, 60%energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of theproducts.
4. Duct type thermal design, reduce the weight of the light and ensure goodheat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the followingmaintenance cost.
5. Work without strobe, fast transient response, A wide range of working voltage.

Dimension

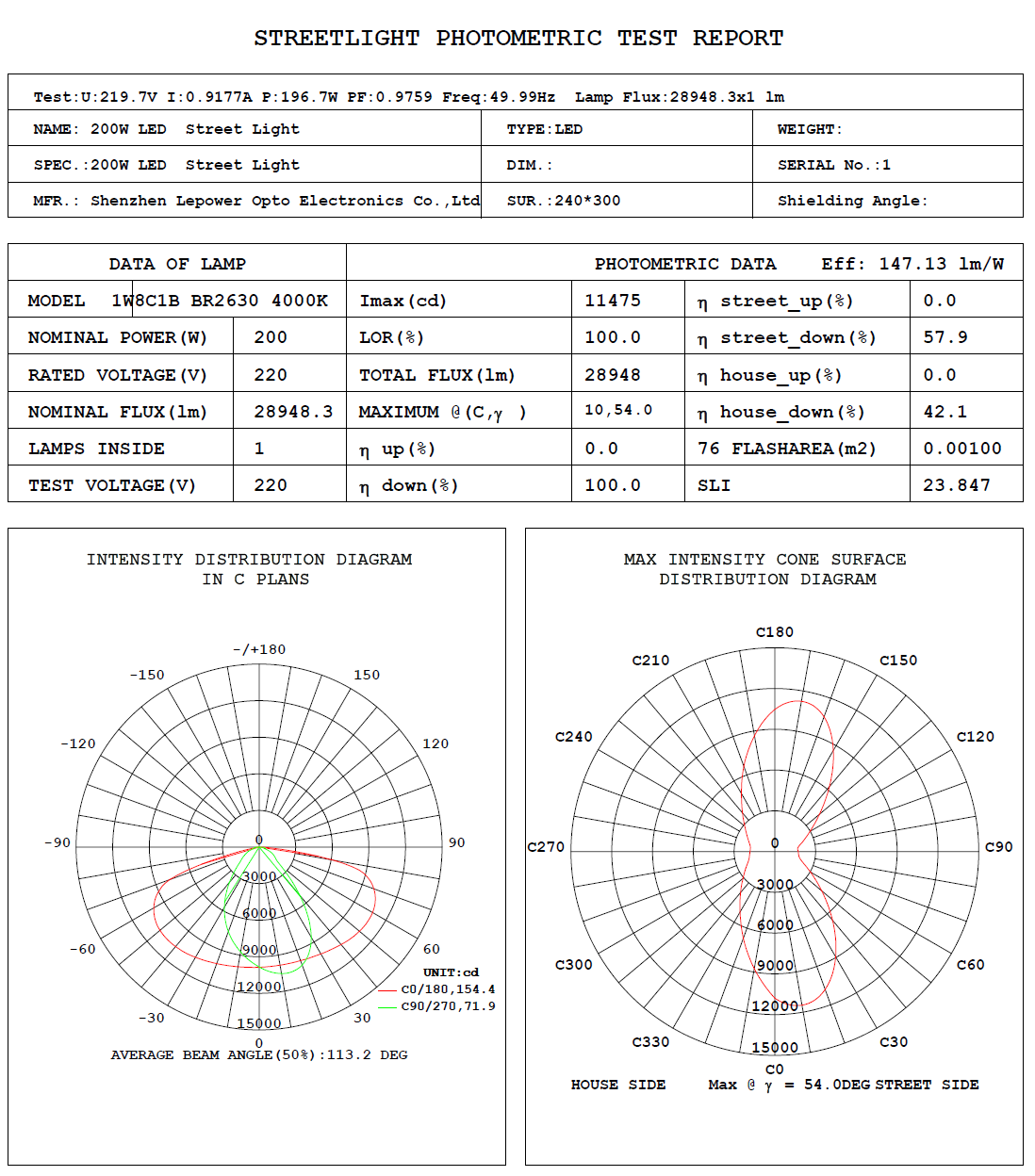

IES test report
