300w High Power Led Flood Light Outdoor Led Light With IP66
Waterproof
Feature
- High lumen output. The original lumen of LED is 200lm/w,the lumen
output of complete lamp is 150-160lm/w,It can save more energy
(60%-70%) than normal led lamps and traditional lamps.
Use Lepower exclusive zero air gap lens technology, achieves zero
light loss. It’s 8% higher efficiency than other similar products,
and 8%, light transmission rate reaches 98%.
Low-energy, use high efficiency constant current driver, 60%
energy-saving ; With overcurrent, overvoltage, lightning, high
temperature protection to fully guarantee the lifespan and stable
performance.
Different beam angle, meet different using environment, Especially
Asymmetric light distribution.
High power LED heat sink has perfectly replaced the traditional
400W to 1000W sodium lamp, this energy-saving cutting edge
innovation fills the gap in the led heat sink market.
Specification
 | Name | 300W high power led flood light |
| Model | LY-HB0606 |
| Power | 300W |
| Voltage | AC 100-277V 50-60Hz |
| Body material | Aluminum alloy |
| LED Chip | Bridgelux / San'an |
| Led quantity | 168pcs |
| CCT | 3000K/4000K /5000K/6000K |
| CRI | Ra>70 (80Ra optional) |
| Luminous efficiency | 160lm/w |
| Lumen Flux | 48,000lm |
| Power factor (PF) | >0.95 |
| Beam angle | 25 / 40 / 60 / 90 degree |
| Lifetime | >50.000hours |
| THD | <20% | IP rating | IP66 |
| Warranty | 5 years | Operating temperature | -40℃~50℃,20%~90% H.R |
Packing information
| Size | 520*258*195mm |
| N.W. | 9 kg |
| Carton | 570*310*255mm |
| G.W. | 10 kg |
IES test report & Light distribution
Application

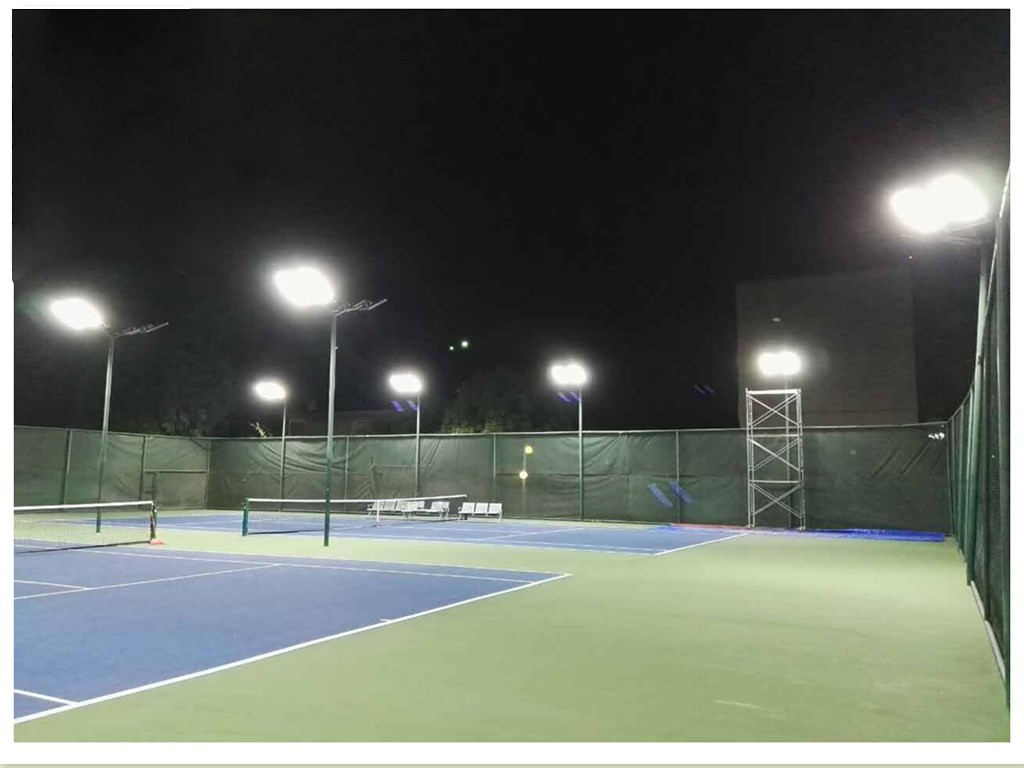

Applied in large sports field lighting, football, basketball, golf
and tennis court, racetrack, badminton, roads, high-rise buildings,
tower lights, etc. It can also be applied in large square, airport, commercial building,
construction engineering, farm, amusement parks, parking lots,
harbor, industrial buildings, and other special lighting
environment.
RFQ
Q1. Can we make our own label on the sample lights?
A: Yes, we can use the label you offer,we can also do OEM & ODM.
Q2. Our project is on seaside, what if your lights be corrosion by
sea water?
A: Metal has high corrosion resistance.Besides, we do best on light
surface treatment, electrostatic spraying and electrophoresis can
effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible ?
A: Yes,that's sure . It is easy know each other via samples, we
look on the long term and win-win cooperation.
Q4. We now have football stadium projects need to do the lighting
design,can you help us?
A: Sure we can, we are the leader of outdoor high power LED flood
lights and LED design provider, our design teams can provide you
the best solution. And if you have the tech to make design yourself
, we can provide the IES files for you.
Q5. I have a football/tennis stadium ,what's your suggestion ?
A: please give me the below information:
1) the area of the field
2) the loction and the height of the light poles
3) the requirement of the illumination
